Rain Bird 1404 Bubbler, 1.00 GPM, Pressure Compensating, Full-Circle, Umbrella Pattern

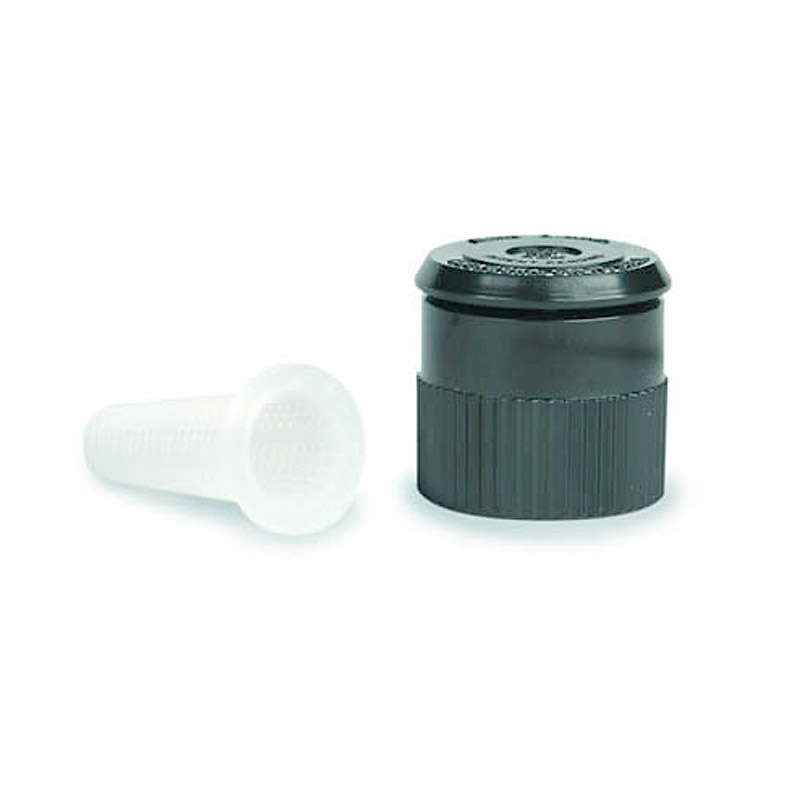

The Rain Bird 1404 Bubbler includes a screen, and provide a controlled, gentle umbrella spray for watering flowers, shrubs, shrub areas, and trees where pressure compensation is required. For best results, mount these bubblers on 1/2″ male risers to water areas from 1′ to 3′. The low flow rates allow water to be absorbed as needed. The Rain Bird 1404 Bubbler is shipped with a special SR-050 1/2″ (15/21) bubbler filter screen for easy installation and resistance to debris. Flow will not fluctuate at pressures between 20 and 90 psi. Low flow rates allow water to be absorbed as needed.

• Corrosion-proof plastic and rubber construction for long life
• Flow is not adjustable for increased vandal resistance
• Maintains even flow
• No adjustment required
• Reduces runoff
• Trickle pattern on models 1401 and 1402; umbrella pattern on models 1404 and 1408

• Flow: 1.00 GPM (0,23 m3/h; 0,06 l/s)
• 1/2″ (15/21) female threaded inlet
• Height: 1″ (2,5 cm)
• Pressure: 20 to 90 psi (1,4 to 6,2 bar)
• Spacing: 1 to 3 feet (0,3 to 0,9 m)
• Top diameter: 1″ (2,5 cm)

• Details
• Performance Data

Warranty period: 3 years
