Description

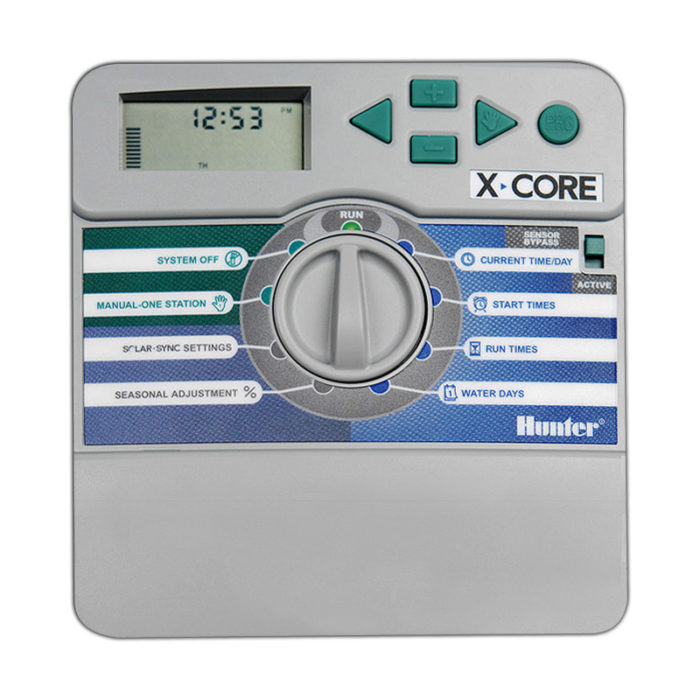

Hunter X-Core Residential Indoor Controller, Entry-level Indoor Residential Controller with Extra Flexibility, Features, and Memory
The new Hunter X-Core Residential Indoor Controller presents handy water management control in a compact, user-friendly controller that is capable of meeting the irrigation requirements for a wide range of residential landscapes. Simply put, the XC brings a whole lot extra to a small controller. Like extra power…the XC offers a choice of 2-, 4-, 6-, and 8-station models, each with plenty of might to operate one or two valves per station plus a pump start relay or master valve. Extra features…including global seasonal adjustment and a 365-day calendar to make water savings easier, plus a default system that permits retrieval of the original program entered into the controller. Extra flexibility…with three programs (each with four start times), multiple scheduling formats, and the ability to select sensor input by station. And extra memory…with a non-volatile on-board program backup and a high-energy lithium battery for timekeeping to assure you’ll never have to reprogram the controller due to power outages. The choice for those who demand outstanding reliability, the Hunter X-Core Residential Indoor Controller is where to turn for extra peace of mind.
Brochure
Features
3 independent programs with 4 start times each
Accommodates a wide range of watering requirements
Choice of independent day scheduling
For maximum watering flexibility (select days of the week, true odd/even, or interval watering)
Easy dial programming
Enhanced dial and push button programming makes the XC easy to operate
Easy-retrieve memory
Ability to retrieve your preferred program, stored in backup memory
Global seasonal adjustment (0% to 150%)
Easy on-screen adjustment alters the amount of watering to accommodate changing weather conditions
Non-volatile memory
Excellent insurance against unreliable power; retains current time, day, and program data
Replaceable lithium battery (included)
For backup timekeeping and to enable remote programming of the controller
Weather sensor compatible
The XC is compatible with rain, freeze, wind and other micro-switch type sensors. Each station can be programmed individually to accept or override the weather sensor input.
Specifications
Electrical
• Battery: 3V Lithium (included) used for remote programming and backup timekeeping, use type CR2032 3-volt
• Clean only with a cloth dampened with mild soap and water
• Electronic short circuit protection
• Maximum Output: .84 amps (includes master valve)
• Model XC-x00 has an IP2X Rating
• Non-volatile memory for program data
• Station Output: .56 amps per station
• Transformer input 120VAC ±10% 60 Hz (230VAC ±10% 50/60 Hz International Models)
• Transformer Output: 24VAC 1.0 amp
• UL Listed
Operating
• 3 Independent Watering Programs
• AM/PM, 24-hour clock
• Simple manual operation
• Programmable rain delay (1 to 7 days)
• Sea level to 2000m at 0-50°C
• Seasonal adjustment (10% to 150%)
• Sensor bypass switch • Sensor override by station
• Station Run Times: 0 to 4 hours in 1-minute increments
• Start Times: 4 per day per program for up to 12 daily starts
• Watering Schedule: 365-day calendar, interval watering, odd/even watering
• XC-x00i for indoor use. XC-x00 for outdoor use
