Description

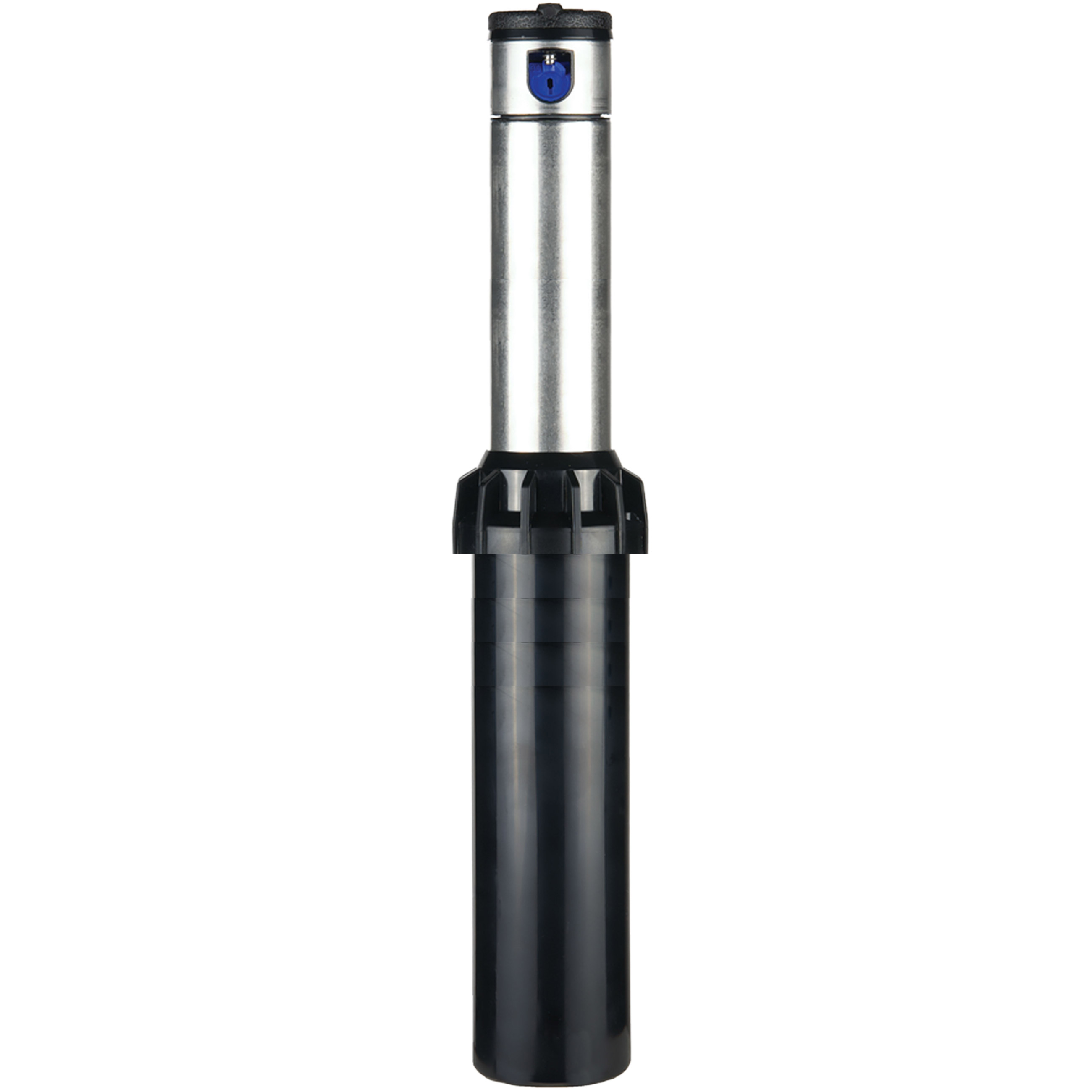

Hunter I-20-06-SS, 6″ Stainless Steel Riser, Pop-up Sprinkler

The standard features of the Hunter I-20-06-SS, include an adjustable arc, check valve, 8 standard nozzles and 4 low-angle nozzles. The rotor with heavy-duty commercial-grade features that’s equally at home in a residential setting. If you’ve ever desired the convenience of being able to use just one rotor to cover all of your needs, here it is.

Got a small area for which you don’t want to create a separate spray zone? Is a portion of your landscape in sandy soil? Is the landscape a mix of shrub zones and expanses of grass? Does one part of the turf require a higher cut? With all the features on today’s I-20-06-SS (most notably its ability to effectively cover a radius range from 17 up to 47 feet) there’s a single-sprinkler alternative to stocking a variety of rotors and sprays. With over 22 different nozzle choices, the Hunter I-20-06-SS rotor can handle the full range of irrigation needs.

  • Radius: 17′ to 46′
  • Flow Rate: 0.36 to 14.8 GPM
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees

• Athletic Fields
• Commercial
• Ground Cover
• High Vandalism Areas
• Municipalities
• Reclaimed Water-If needed, add to comments in your order
• Residential
• Riser-Mounted Sprinklers
• Shrubs

• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Models: Shrub, 4″, 6″, 12″
• Models stainless riser: 4″, 6″
• Nozzle choices: 22
• Nozzle racks: 1.5 to 8.0 blue, 2.0 LA to 4.5 LA gray, 0.50 to 3.0 black, 6.0 to 13.0 green
• Quick check arc mechanism
• Through-the-top arc adjustment
• Water lubricated gear-drive

• Flow: 0.36 to 14.8 GPM
• Nozzle trajectory: Std = 25 degrees. Low Angle = 13 degrees
• Operating pressure range: 20 to 100 PSI
• Precipitation rates: 0.4 in/hr approx
• Radius: 17′ to 46′
• Recommended pressure range: 25 to 70 PSI
• Exposed diameter: 1 3/4″
• Inlet size: 3/4″
• Overall height: 9 7/8″
• Pop-up height: 6″

Brochure
Details

Warranty period: 5 years
