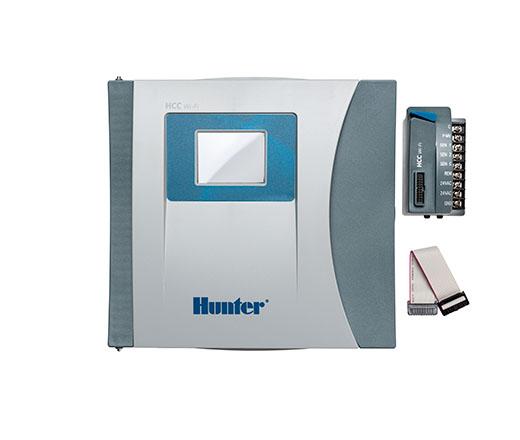

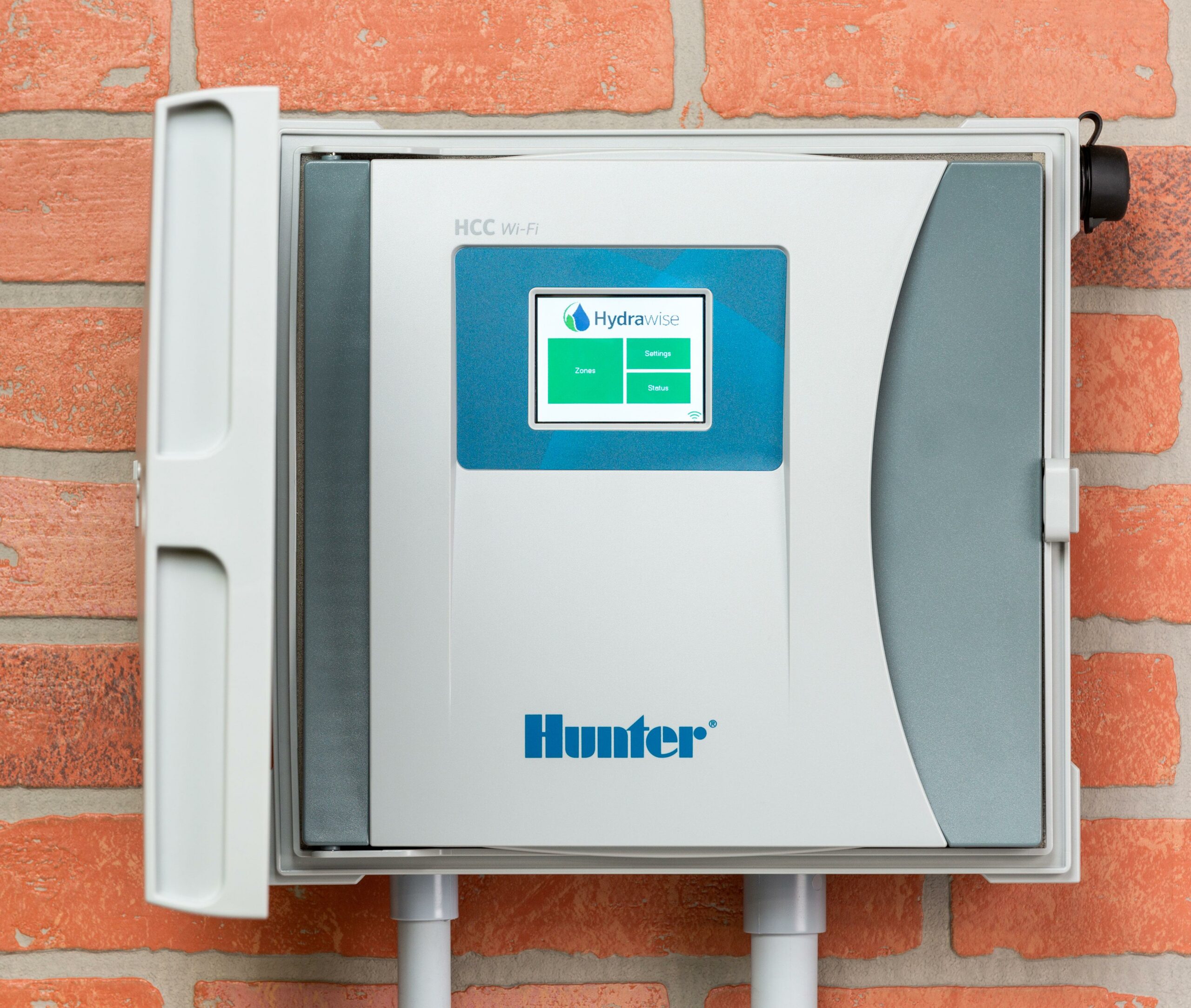

Hunter HCC-800-M

$500.72$2,173.66

Bring the power of Hydrawise® to residential, commercial, and public-sector projects with this affordable powerhouse.
Number of Stations 8 to 54*

Description

HCC

Bring the power of Hydrawise® to residential, commercial, and public-sector projects with this affordable powerhouse.
Number of Stations 8 to 54*
Type Modular Controller
Wi-Fi Enabled
  • Wi-Fi capable: Fully integrated for quick connection to Hydrawise cloud-based irrigation management system
  • High-capacity: Up to 38 or 54 stations depending on model and configuration
  • Two-wire decoder option: Up to 54 EZ decoder stations or combine with conventional output modules
  • Compatible with both EZ Decoders and the Wireless Valve Link system
The HCC combines the best features of the ICC2 controller with automatic, weather-based daily adjustments to Hydrawise programming, offering a smart and cost-effective solution for managing commercial landscapes. It supports up to 54 zones and can operate two stations simultaneously, ensuring efficient irrigation management for large-scale properties.

Specs

Video Detail

Additional information

Weight N/A
# of stations

8

Cabinet Type

Gray Metal Wall, Plastic, Stainless Steel

Features

  • Number of stations: 4 or 6 (fixed models)
  • Wi-Fi capable controller automatically managed by Hydrawise® software
  • Backlit display provides optimal visibility in any light
  • 3 flexible programs with 4 start times each and up to 6-hour run times
  • QuickCheck™ provides simple diagnostics of faulty field wiring
  • Hide Programs option shows 1 program and 1 start time for simplification
  • Suspend irrigation up to 99 days during the off-season
  • Short-circuit protection detects wiring faults and skips the station without system damage
  • Easy Retrieve® memory backs up the full irrigation schedule
  • Delay Between Stations for slow-closing valves or pump recharge
  • Cycle and Soak prevents water waste and runoff in areas with elevation changes or tight soils
  • Seasonal adjustment for quicker schedule adjustments without changing run times

Specifications



OPERATING SPECIFICATIONS

• Transformer input: 120 VAC

• Transformer output (24 VAC): 1 A

• Station output (24 VAC): 0.56 A

• P/MV output (24 VAC): 0.28 A

• Sensor inputs: 1

• Approvals (controller): Plastic IP55 (outdoor), UL, cUL, FCC, CE, RCM, ISED

• Approvals (module): Wi-Fi b/g/n, Bluetooth® 5.0, UL, cUL, FCC, CE, RCM, ISED

• Warranty period: 2 years
