FX Luminaire QZ LED Up Light

$81.80$102.65

Available on backorder

Customized products may take 2 – 4 weeks for delivery

Description

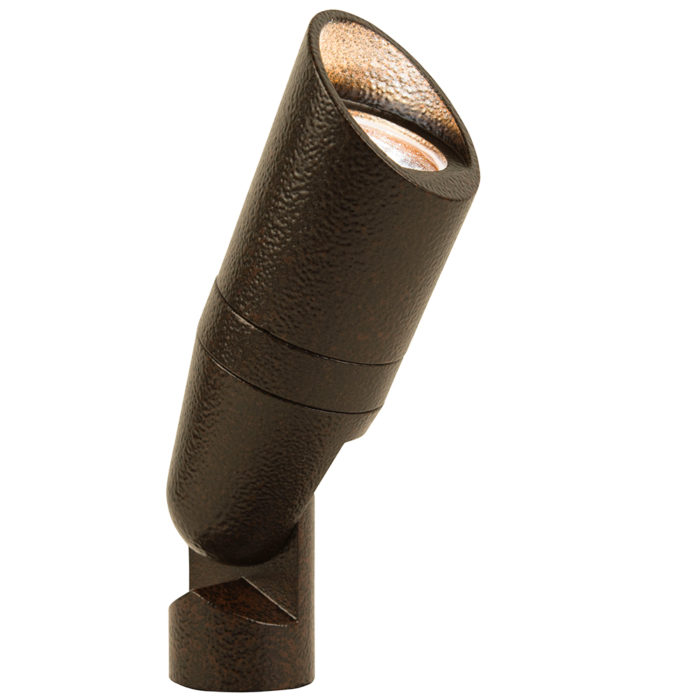

FX Luminaire QZ LED Up Light, Our Smallest Up Light Offered in the FX LED Line

With 1 LED board, the FX Luminaire QZ LED Up Light is capable of all the same features and optics of the larger LED up lights like the FX Luminaire NP LED Up Light and FB but in a smaller package. The QZ is also capable of zoning and dimming on a Luxor ZD System with the added ZD option.

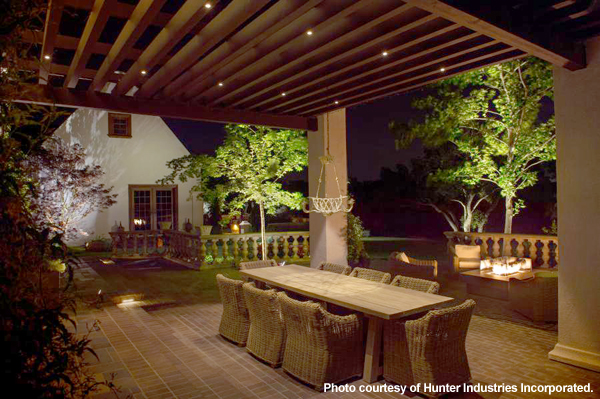

Utilizing accent lights in a landscape lighting system design can add texture, contrast, and interest. FX Luminaire provides highly efficient LED accent lights for virtually any outdoor application.

• Die-cast aluminum • Input voltage: 10-15V
• Color temperature filters • Phase and PWM dimmable
• Compatible with Luxor® technology • ProAim™ adjustability
• Cree® Integrated LEDs • Two-layer marine-grade anodization and powder coat finish



FX Luminaire QZ Up Light

Accessories
Installation
Specifications

Additional information

Weight 1.2 lbs
Zoning & Dimming Option

,

Lamp

Finish Style

, , , ,

QZ Details

  Powder Coat Finish Options


FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique tumbled finish FX Luminaire LED Up Light nickle finish FX Luminaire LED Up Light natural brass finish
WG
White Gloss
FW
Flat White
AL
Almond
BZ
Bronze Metallic
FX Luminaire LED Up Light natural brass finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish
DG
Desert Granite
WI
Weathered Iron
SB
Sedona Brown
FB
Flat Black



  QZ: Includes fixture, specified LED board, spike, and filters.
QZ SSS
Included Filters
Amber Green
Blue Frosted



  QZ Ordering Information
    Factory Installed Options: Order 1 + 2 (optional) + 3 + 4
Step Description   Code
1 Fixture Code   QZ
2 Optional ZD  ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller)
3 Lamp   • 1LED (50,000 avg. life hours)
5 Finish   WG, FW, AL, BZ, DG, WI, SB, FB
  Example: QZ-ZD-1LED-WI = QZ – ZD Option – 1LED Board – Weathered Iron Finish



QZ Spec Chart

  QZ Spec Chart
  Number of LEDs   1
  Halogen Lumen   10 Watt
  Output Equivalent
( Useful LED Life (L70)
  50,000 hrs. average
  Input Voltage   10 to 15 V
  VA Total (use this number
to size the transformer)
  2.4
  Watts Used   2
  Lumens per Watt (Efficacy)   34.9
  Max Lumens   62
  CRI (Ra)   79.8



QZ Dimensions

  QZ Dimensions



QZ Photometrics

  QZ Photometrics
