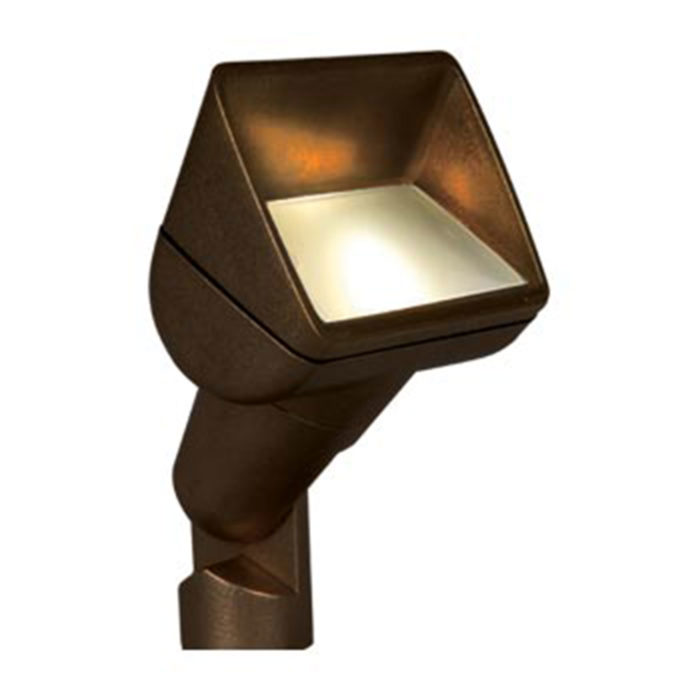

FX Luminaire PB LED Up Light

$145.92$225.54

Available on backorder

Customized Products may take 2 – 4 weeks for delivery.

Description

FX Luminaire PB LED Up Light, A Compact LED Wall Wash Lighting Solution

The FX Luminaire PB LED Up Light is available in one or three LED with full color lens options off frosted, blue, amber, and green included. The wider angle of the PB allows a broader lighting option for larger structures and spaces. This Up Light is engineered with solid construction and small in size.

Utilizing accent lights in a landscape lighting system design can add texture, contrast, and interest. FX Luminaire provides highly efficient LED accent lights for virtually any outdoor application.

Please Allow 12-16 business days for shipping
No returns on lighting products

• Die-cast aluminum or brass • Natural brass and antique finishes
• Color temperature filters • Phase and PWM dimmable
• Compatible with Luxor® technology • ProAim™ adjustability
• Cree® Integrated LEDs • Two-layer marine-grade anodization and powder coat finish
• Input voltage: 10-15V



Accessories
Installation
Specifications

Additional information

Weight 2.01 lbs
Zoning & Dimming Option

,

Lamp

,

Metal Finish Options

, , , ,

Finish Options

, , , , , , , ,

PB Details

  Metal Finish Options
FX Luminaire LED Up Light antique bronze finish
AB
Antique Bronze*
on brass
FX Luminaire LED Up Light antique tumbled finish
AT
Antique Tumbled*
on brass
FX Luminaire LED Up Light nickle finish
NP

Nickel Plate*
FX Luminaire LED Up Light natural brass finish
BS

Natural Brass



  Powder Coat Finish Options


FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique tumbled finish FX Luminaire LED Up Light nickle finish FX Luminaire LED Up Light natural brass finish
WG
White Gloss
FW
Flat White
AL
Almond
BZ
Bronze Metallic
FX Luminaire LED Up Light natural brass finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish
DG
Desert Granite
WI
Weathered Iron
SB
Sedona Brown
FB
Flat Black



  PB: Includes fixture, specified LED board, super slot spike, and filters.
PB SSS
Included Filters

Amber

Green

Blue



  PB Ordering Information
    Factory Installed Options: Order 1 + 2 (optional) + 3 + 4
Step Description   Code
1 Fixture Code   PB
2 Optional ZD  ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller)
3 Lamp   • 1LED (50,000 avg. life hours)
• 3LED (50,000 avg. life hours)
5 Finish   WG, FW, AL, BZ, DG, WI, SB, FB
  Example: PB-ZD-3LED-NP = PB – ZD Option – 3LED Board – Nickel Plate Finish



PB Spec Chart

  PB Spec Chart
  Number of LEDs   1   3
  Halogen Lumen   10 Watt   20 Watt
  Output Equivalent
( Useful LED Life (L70)
  50,000 hrs. average   50,000 hrs. average
  Input Voltage   10 to 15 V   10 to 15 V
  VA Total (use this number
to size the transformer)
  2.4   4.5
  Watts Used   2   4.2
  Lumens per Watt (Efficacy)   34   37
  Max Lumens   71   151
  CRI (Ra)   67.3   67



PB Dimensions

  PB Dimensions

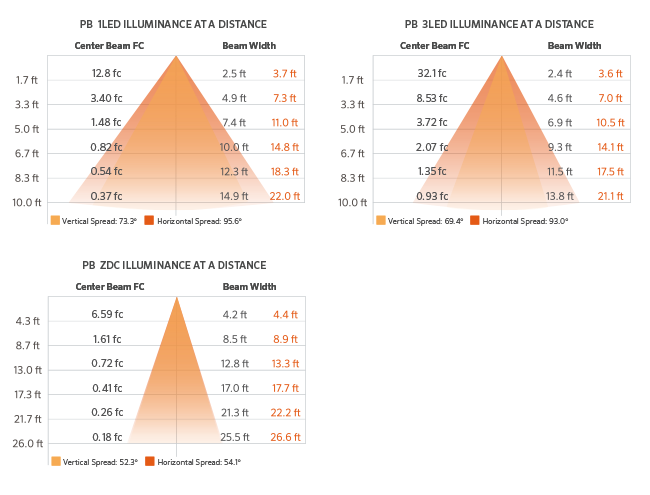

PB Photometrics



  PB Photometrics
