FX Luminaire LM LED Wall Light
$192.94 – $202.05
Available on backorder
Description
FX Luminaire LM LED Wall Light, A Higher Level of Illumination
The FX Luminaire LM LED Wall Light utilizes the same smart design as the CP LED Wall Light. This light offers 20 watts to the 10 watts of the CP LED Wall Light.
Use the LM alone or install in conjunction with CP to maintain consistent lighting design style. To achieve the best effect and utility, install the LM fixture in the wall adjacent to a stairway.
Please Allow 12-16 business days for shipping
No returns on lighting products
• Installation
• Specifications
• 1A – Bollard Mount
• 1B – Concrete Wall Mount
• 1C – Wood Wall Mount
Additional information
| Weight | 3.18 lbs |
|---|---|
| Finish Options | BZ-Bronze Metallic, CU-Copper, DG-Desert Granite, SB-Sedona Brown |
| Zoning & Dimming Option |
Features
LM INCLUDED
| LM: Includes fixture, 2LED board, filters, choice of faceplate finish, and mounting sleeve | ||||||||
|---|---|---|---|---|---|---|---|---|
 LM |
Included Filter | |||||||
 Amber |
||||||||
FINISH CHART
| Metal Finish Options | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||||||
ABAntique Bronze* |
ATAntique Tumbled* |
CUCopper |
NPNickel Plate* |
|||||||
* May require longer lead time
| Powdercoat Finish Options | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
||||||
WGWhite Gloss |
FWFlat White |
ALAlmond |
BZBronze Metallic |
DGDesert Granite |
||||||
 |
 |
 |
 |
|||||||
WIWeathered Iron |
VFVerde Speckle |
SBSedona Brown |
FBFlat Black |
|||||||
LM ORDERING INFORMATION
FACTORY INSTALLED OPTIONS: Order 1 + 2 (optional) + 3 + 4
| Step | Description | Code | |||||
|---|---|---|---|---|---|---|---|
| 1 | FIXTURE CODE | LM | |||||
| 2 | OPTIONAL ZD | ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller) | |||||
| 3 | LAMP | 2LED (50,000 avg. life hours) | |||||
| 4 | FINISH | XX (See finish chart) | |||||
EXAMPLE: LM-ZD-2LED-SB = LM – ZD Option – 2LED Board – Sedona Brown Finis
Specifications
LM SPEC CHART
| Number of LEDs | 2 | |
|---|---|---|
| Halogen Lumen Output Equivalent |
20 Watt | |
| Useful LED Life (L70) | 50,000 hrs avg | |
| Input Voltage | 10 to 15V | |
| VA Total (Use this number to size the transformer) |
4.8 | |
| Watts Used | 4.0 | |
| Lumens per Watt (Efficacy) |
1.6 | |
| Max Lumens | 6 | |
| CRI (Ra) | 81.3 | |

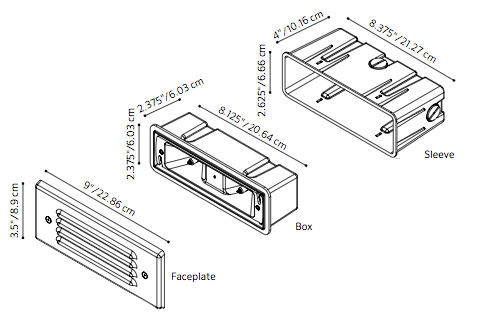

LM DIMENSIONS
LM PHOTOMETRICS
