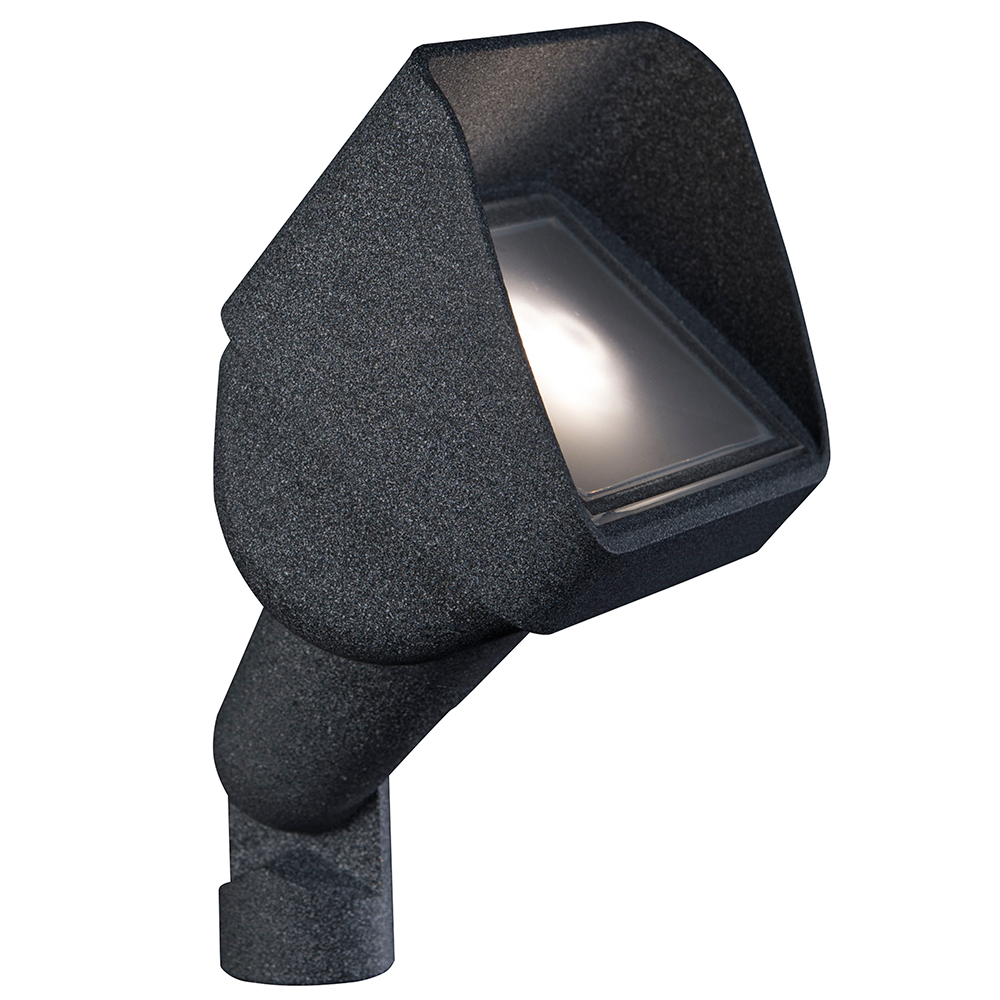

FX Luminaire LC LED Up Light

$169.19$317.27

Available on backorder

Customized Products may take 2 – 4 weeks for delivery.

Description

FX Luminaire LC LED Up Light, FX Luminaire’s Largest Wall-Wash Up Light

The FX Luminaire LC LED Up Light projects a broad spectrum of light on large walls and spaces. It is available in 1, 3, 6 and 9 LED, and is available in an array of finishes to suit the needs of any design that calls for a large-span wall washing up light. The LC includes your choice LED boards, choice of finish, 4 ft. lead wire and a Long Slot Spike. All LC up lights come standard with amber, green, blue and frosted filter.

Utilizing accent lights in a landscape lighting system design can add texture, contrast, and interest. FX Luminaire provides highly efficient LED accent lights for virtually any outdoor application.

• Color temperature filters • Natural brass or antique finishes
• Compatible with Luxor® technology • Phase and PWM dimmable
• Cree® Integrated LEDs • ProAim™ adjustability
• Die-cast aluminum or brass • Two-layer marine-grade anodization and powder coat finish
• Input voltage: 10-15V



Accessories
Installation
Specifications

Additional information

Weight 1.995 lbs
Zoning & Dimming Option

,

Lamp

, , ,

Finish Options

, , , , , , , , , , ,

LC Details

  Metal Finish Options


FX Luminaire LED Up Light antique bronze finish
AB
Antique Bronze*
on brass
FX Luminaire LED Up Light antique tumbled finish
AT
Antique Tumbled*
on brass
FX Luminaire LED Up Light nickle finish
NP

Nickel Plate*
FX Luminaire LED Up Light natural brass finish
BS

Natural Brass



  Powder Coat Finish Options


FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique tumbled finish FX Luminaire LED Up Light nickle finish FX Luminaire LED Up Light natural brass finish
WG
White Gloss
FW
Flat White
AL
Almond
BZ
Bronze Metallic
FX Luminaire LED Up Light natural brass finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish
DG
Desert Granite
WI
Weathered Iron
SB
Sedona Brown
FB
Flat Black



  LC: Includes fixture,specified LED board, spike, and filters.
LC LSS
Included Filters

Amber

Green

Blue



  LC Ordering Information
    Factory Installed Options: Order 1 + 2 (optional) + 3 + 4
Step Description   Code
1 Fixture Code   FB
2 Optional ZD  ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller)
3 Lamp   • 1LED (50,000 avg. life hours)
• 3LED (50,000 avg. life hours)
5 Finish   WG, FW, AL, BZ, DG, WI, VF, SB, FB
  Example: FB-ZD-3LED-WI = FB – ZD Option – 3LED Board – Weathered Iron Finish

* May require longer lead time

  LC Spec Chart
  Number of LEDs   1   3
  Halogen Lumen   10 Watt   20 Watt
  Output Equivalent
( Useful LED Life (L70)
  50,000 hrs avg   50,000 hrs avg
  Input Voltage   10 to 15 V   10 to 15 V
  VA Total (use this number
to size the transformer)
  2.4   4.5
  Watts Used   2   4.2
  Lumens per Watt (Efficacy)   31.1   40.2
  Max Lumens   60   155
  CRI (Ra)   78.6   78.4

LC Dimensions & Photometrics

  LC Dimensions

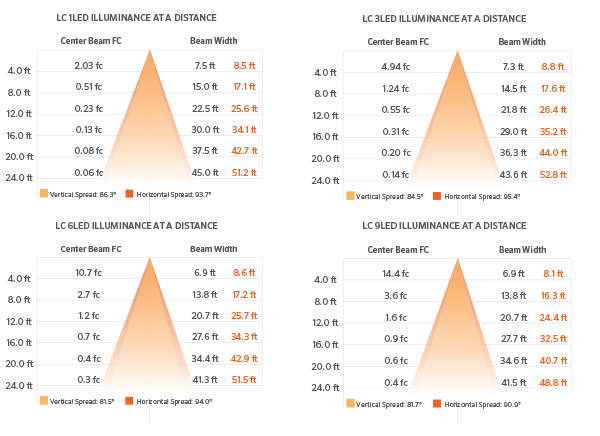

  LC Photometrics
