FX Luminaire FB LED Up Light

$104.94$139.35

Available on backorder

Customized Products may take 2 – 4 weeks for delivery.

Description

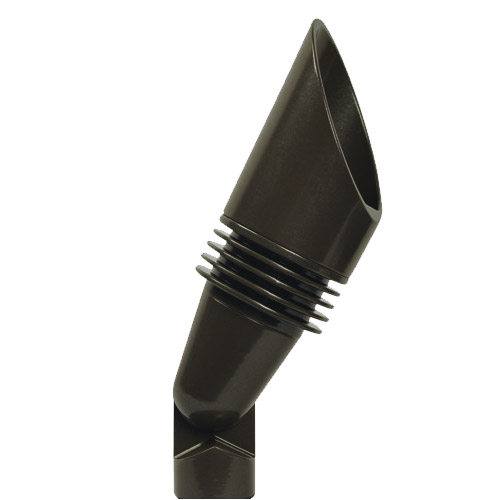

FX Luminaire FB LED Up Light, Designed for Smaller Landscapes

This light is similar in style to its bigger brother the NP Led Up Light. It also fits nicely into smaller landscapes and tight spaces. The FB is perfect for creating a dramatic effect for specific areas and will accommodate up to a 3 LED Board.
It also includes four FX LED color filters and has 8 FX powder coat finish options. This up light offers all the same benefits of the NP in a more compact package.
Utilizing accent lights in a landscape lighting system design can add texture, contrast, and interest. FX Luminaire provides highly efficient LED accent lights for virtually any outdoor application.
• Die-cast aluminum • Input voltage: 10-15V
• Color temperature filters • Phase and PWM dimmable
• Compatible with Luxor® technology • ProAim™ adjustability
• Cree® Integrated LEDs • Two-layer marine-grade anodization and powder coat finish



Accessories
Installation
Specifications

Additional information

Weight 1.64 lbs
Zoning & Dimming Option

,

Lamp

, ,

Finish Options

, , , , , , ,

FB Details

  Metal Finish Options


FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique tumbled finish FX Luminaire LED Up Light nickle finish FX Luminaire LED Up Light natural brass finish
WG
White Gloss
FW
Flat White
AL
Almond
BZ
Bronze Metallic
FX Luminaire LED Up Light natural brass finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish FX Luminaire LED Up Light antique bronze finish
DG
Desert Granite
WI
Weathered Iron
SB
Sedona Brown
FB
Flat Black



  FB: Includes fixture, specified LED board, spike, and filters.
FB SSS
Included Filters
Amber Green
Blue Frosted



  FB Ordering Information
    Factory Installed Options: Order 1 + 2 (optional) + 3 + 4
Step Description   Code
1 Fixture Code   FB
2 Optional ZD  ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller)
3 Lamp   • 1LED (50,000 avg. life hours)
• 3LED (50,000 avg. life hours)
5 Finish   WG, FW, AL, BZ, DG, WI, SB, FB
  Example: FB-ZD-3LED-WI = FB – ZD Option – 3LED Board – Weathered Iron Finish
  FB Spec Chart
  Number of LEDs   1   3
  Halogen Lumen   10 Watt   20 Watt
  Output Equivalent
( Useful LED Life (L70)
  50,000 hrs. avg   50,000 hrs. avg
  Input Voltage   10 to 15 V   10 to 15 V
  VA Total (use this number
to size the transformer)
  2.4   4.5
  Watts Used   2   4.2
  Lumens per Watt (Efficacy)   31.1   40.2
  Max Lumens   60   155
  CRI (Ra)   78.6   78.4

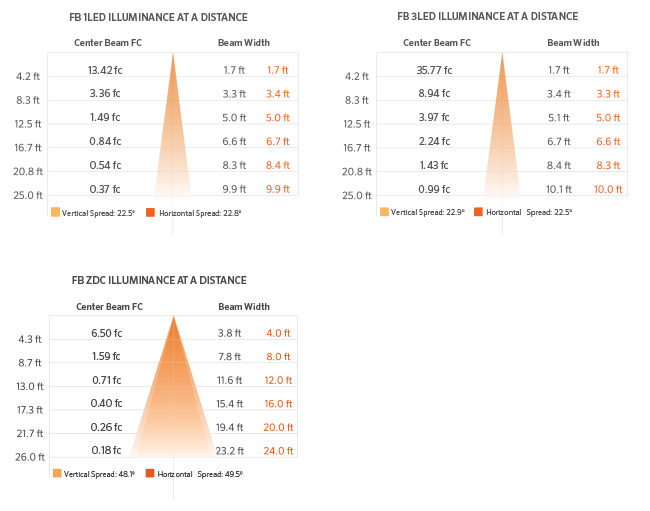

FB Dimensions & Photometrics

  FB Dimensions
  FB Dimensions
