FX Luminaire CV LED Path Light

$166.99$237.33

Available on backorder

Customized products may take 2 – 4 weeks for delivery

Description

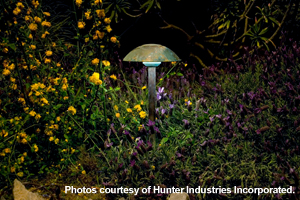

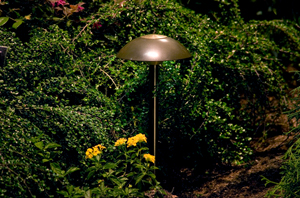

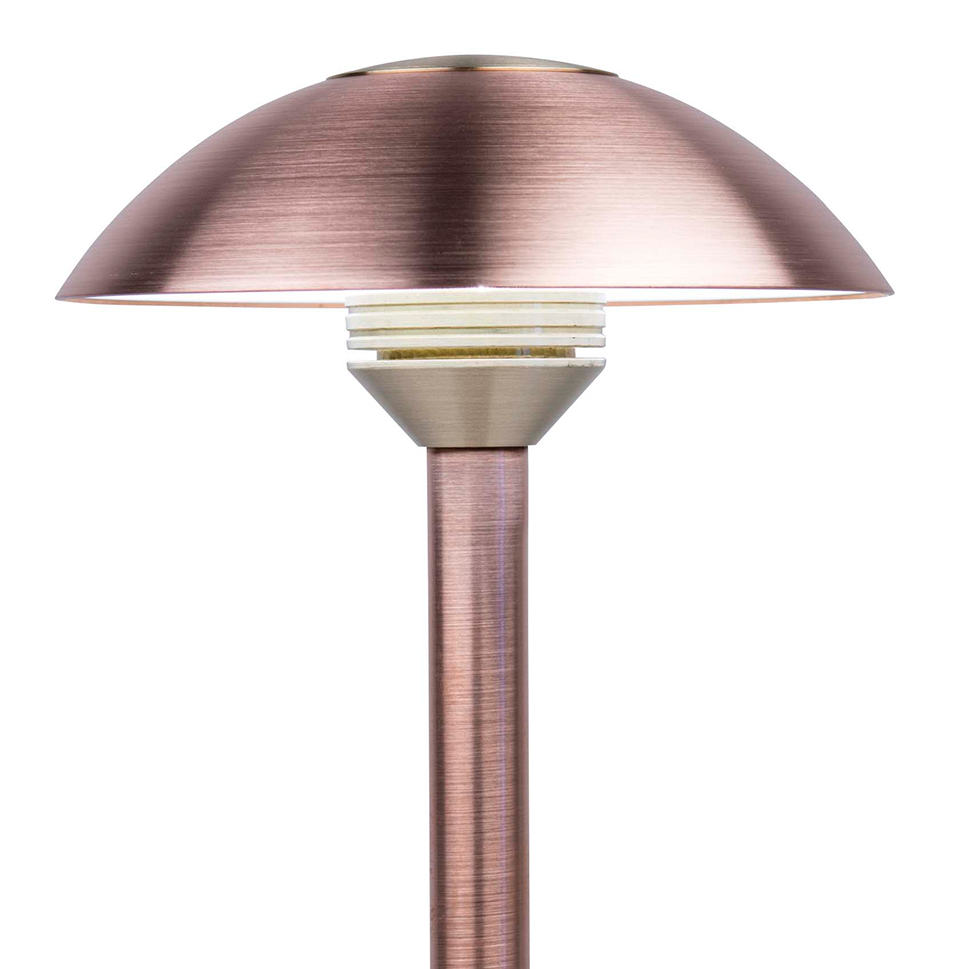

FX Luminaire CV LED Path Light, Derived from the Most Elegant and Universally Harmonious Shape, the Ellipse

The elliptical design of the  FX Luminaire CV LED Path Light graces any garden space with pure cosmic elegance. The brass trim creates contrast with the raw copper structure producing a visual garnish to an unbroken outline. With time, the copper and brass will move toward each other in color and character, allowing this fixture to quietly mature with any garden. The CV is a soft, efficient, and safe path light that can be used for walkways of all shapes, sizes, and locations. Its rounded hat shape gives it a classic look that blends well in a variety of landscapes.

Please Allow 12-16 business days for shipping

*Premium finishes expect 21-30 business days
No returns on lighting products

• Copper/brass construction
• G4 bi-pin lamp
• Input voltage: 10-15V
• Natural powder coated, or antiqued copper/brass

CV: Includes fixture, specified LED board, spike, & filters

https

CV LSS
Available on request
Amber Green Blue

Metal Finish Options

               *AB-Antique Bronze*

(On Copper)

               *AT-Antique Tumbled*

(On Copper)

         CU-Copper         *NP-Nickel Plate*
* May require longer lead time

Powder Coat Finish Options

*WG-White Gloss *FW-Flat White  *AL-Almond     BZ-Bronze Metallic       DG-Desert Granite
 *WI-Weathered Iron      SB-Sedona Brown   *FB-Flat Black



CV Installed Options

  Factory Installed Options (Top Assembly) Order 1 + 2 + 3 + 4
 Step  Description  Code
 1  TOP ASSEMBLY  CVLEDTA
 2  TOP FINISH  AB*, AT*, CU, NP*, WG, FW, AL, BZ, DG, WI, SB, FB
 Example: CVLEDTA-BZ = CV top assembly – Bronze Metallic Finish



BD INSTALLED OPTIONS

FACTORY INSTALLED OPTIONS (TOP ASSEMBLY): Order 1 + 2 + 3 + 4
Step Description Code
1 TOP ASSEMBLY BDLEDTA
2 TOP FINISH AB*, AT*, CU, NP*, WG, FW, AL, BZ, DG, WI, SB, FB

EXAMPLE: BDLEDTA-SB = BD top assembly – Sedona Brown Finish

FACTORY INSTALLED OPTIONS (RISER ASSEMBLY): Order 1 + 2 (optional) + 3 + 4 + 5
Step Description Code
1 RISER TYPE P
2 OPTIONAL ZD ZD (Refer to the Luxor page)
3 LAMP 1LED (50,000 avg. life hours)
4 RISER HEIGHT 8RA, 12RA, 18RA,18RA, 36RA (in inches) ADDITIONAL SIZES AVAILABLE ON REQUEST
5 FINISH AB*, AT*, CU, NP*, WG, FW, AL, BZ, DG, WI, SB, FB

EXAMPLE: P-ZD-1LED-12RA-SB = Riser Type – ZD option – 1 LED Board – 12″ Riser – Sedona Brown Finish Note: * May require longer lead time” border=”1″ width=”670″>  Factory Installed Options (Riser Assembly) Order 1 + 2 (optional) + 3 + 4 + 5 Step Description Code 1 RISER TYPE P 2 OPTIONAL ZD ZD (Refer to the Luxor page) 3 LAMP 1LED, 3LED (50,000 avg. life hours) 4 RISER HEIGHT 8RA, 12RA, 18RA, 24RA, 36RA (in inches)
ADDITIONAL SIZES AVAILABLE ON REQUEST
5 FINISH AB*, AT*, CU, NP*, WG, FW, AL, BZ, DG, WI, SB, FB Example: G-ZD-3LED-24RA-BZ = Riser Type – ZD option – 3 LED Board – 24″ Riser – Bronze Metallic Finish Note: * May require longer lead time



Detail LSS
Detail PM
Detail SJ
Detail SSS
Specifications



Additional information

Weight 4.35 lbs
Finish Options

, , ,

Riser Height

,

Zoning & Dimming Option

,

Lamp

,
