FX Luminaire CC LED Up Light

$183.19$264.30

Available on backorder

Customized products may take 2 – 4 weeks for delivery

Description

FX Luminaire CC LED Up Light, Designed for for Small Scale Elements

The FX Luminaire CC LED Up Light combines smart style and functional ability. Our Driver-OnBoard technology uses long-life LEDs which provide excellent illumination. It also fuses high-design with precision engineering, making it an ideal selection. This up light includes choice of LED board, your choice of finish, 4 ft lead wire, and a Long Slot Spike.

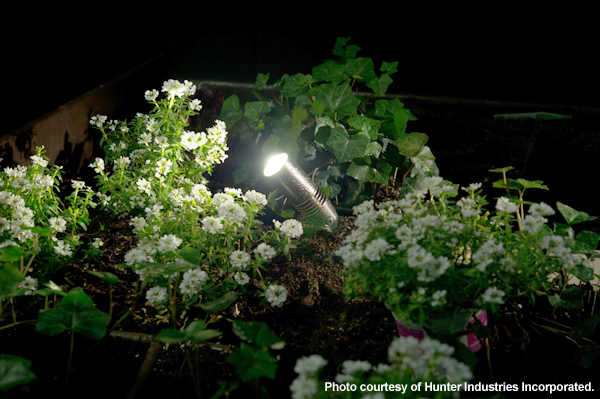

Accent lights in a landscape lighting system design can add texture, contrast, and interest. The CC  up light provides highly efficient LED accent lights for virtually any outdoor application.
• Brass construction • Input voltage: 10-15V
• Color temperature filters • Natural brass or antique finishes
• Compatible with Luxor® technology • Phase and PWM dimmable
• Cree® Integrated LEDs • ProAim™ adjustability



FX Luminaire CC Up Light























Accessories
Installation
Specifications

Additional information

Weight 2.48 lbs
Zoning & Dimming Option

,

Lamp

,

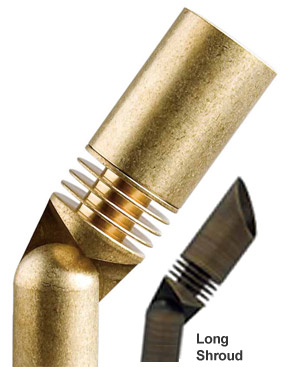

Long Shield Option

,

Finish Options

, , ,

CC Details

Metal Finish Options


FX Luminaire LED Up Light antique bronze finish
AB
Antique Bronze*
on brass
FX Luminaire LED Up Light antique tumbled finish
AT
Antique Tumbled*
on brass
FX Luminaire LED Up Light nickle finish
NP

Nickel Plate*
FX Luminaire LED Up Light natural brass finish
BS

Natural Brass



CC: Includes fixture, specified LED board (1), spike (1), and filters.
CC SSS
Included Filters
Amber Green
Blue Frosted



CC Ordering Information
Factory Installed Options: Order 1 + 2 (optional) + 3 + 4 (optional) + 5
Step Description Code
1   Fixture Code CC
2   Optional ZD ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller)
3   Lamp • 1LED (50,000 avg. life hours)
• 3LED (50,000 avg. life hours)
4   Shield Code LS (Long Shield)
5   Finish AB*, AT*, NP*, BS
Example: CC-ZD-3LED-LS-BS = CC – ZD Option – 3LED Board – Long Shield – Natural Brass Finish

* May require longer lead time

  CC Spec Chart
  Number of LEDs   1   3
  Halogen Lumen   10 Watt   20 Watt
  Output Equivalent
(Useful LED Life (L70)
  50,000 hrs. avg   50,000 hrs. avg
  Input Voltage   10 to 15 V   10 to 15 V
  VA Total
(for sizing the transformer)
  2.4   4.5
  Watts Used   2   4.2
  Lumens per Watt (Efficacy)   35.8   28.2
  Max Lumens   59   123
  CRI (Ra)   69.3   69.3
